Formatting help output

Customizing an existing formatter

In CLI11, you can control the output of the help printout in full or in part. The default formatter was written in such a way as to be customizable. You can use app.get_formatter() to get the current formatter. The formatter you set will be inherited by subcommands that are created after you set the formatter.

There are several configuration options that you can set:

Labels will map the built in names and type names from key to value if present. For example, if you wanted to change the width of the columns to 40 and the REQUIRED label from (REQUIRED) to (MUST HAVE):

app.get_formatter()->column_width(40);
app.get_formatter()->label("REQUIRED", "(MUST HAVE)");

Used labels are REQUIRED, POSITIONALS, Usage, OPTIONS, SUBCOMMAND, SUBCOMMANDS, Env, Needs,Excludes, and any type name such as TEXT, INT,FLOAT and others. Replacing these labels with new ones will use the specified words in place of the label.

Customization Option Descriptions

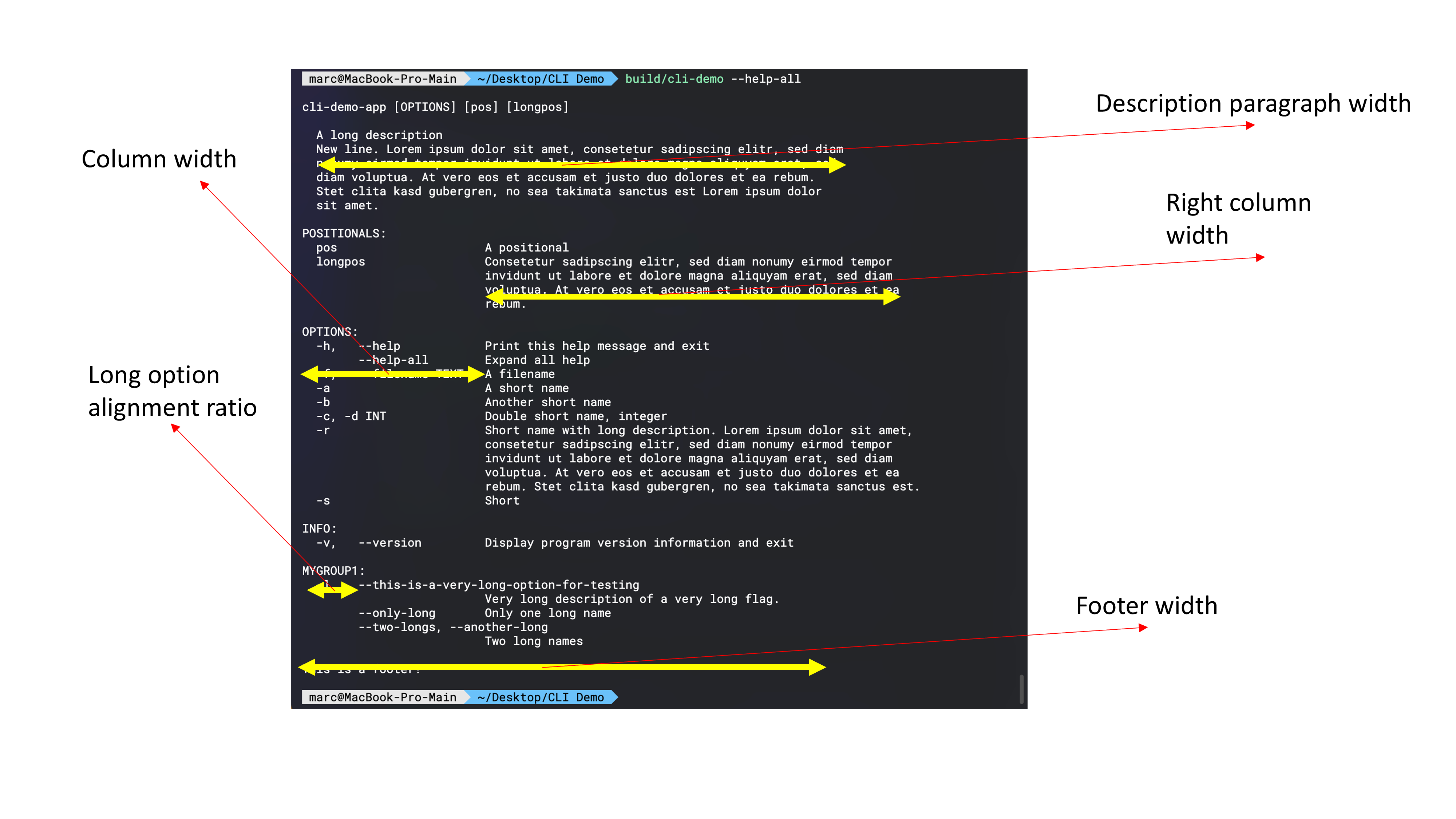

Some of the control parameters are visualized in Figure 1. They manage the column widths and ratios of the different sections of the help

long option alignment ratio

The long option alignment ratio controls the relative proportion of short to long option names. It must be a number between 0 and 1. values entered outside this range are converted into the range by absolute value or inversion. It defines where in the left column long optiosn are aligned. It is a ratio of the column width property.

formatting options

There are occasions where it is necessary to disable the formatting for headers and footers the two options enable_description_formatting(false) and enable_footer_formatting(false) turn off any formatting on the description and footer. This allows things like word art or external management of alignment and width. With formatting enabled the width is enforced and the paragraphs reflowed.

Option output control

Additional control options manage printing of specific aspects of an option

OPTIONS:
  -h,   --help           Print this help message and exit
        --opt TEXT [DEFFFF]
  -o,   --opt2 INT       this is a description for opt2
  -f, -n, --opt3, --option-double FLOAT
                         this is a description for option3
        --flag, --no_flag{false}
                         a flag option with a negative flag as well

The [DEFFFF] portion, which is the default value for options if specified can be turned off in the help output through enable_option_defaults(false). The TEXT, INT, FLOAT or other type names can be turned off via enable_option_type_names(false). and the {false} or flag default values can be turned off using enable_default_flag_values(false).

Subclassing

You can further configure pieces of the code while still keeping most of the formatting intact by subclassing either formatter and replacing any of the methods with your own. The formatters use virtual functions most places, so you are free to add or change anything about them. For example, if you wanted to remove the info that shows up between the option name and the description:

class MyFormatter : public CLI::Formatter {
  public:
    std::string make_option_opts(const CLI::Option *) const override {return "";}
};
app.formatter(std::make_shared<MyFormatter>());

Look at the class definitions in FormatterFwd.hpp or the method definitions in Formatter.hpp to see what methods you have access to and how they are put together.

Anatomy of a help message

This is a normal printout, with <> indicating the methods used to produce each line.

<make_description(app)>
<make_usage(app)>
<make_positionals(app)>
  <make_group(app, "Positionals", true, filter>
<make_groups(app, mode)>
  <make_group(app, "Option Group 1"), false, filter>
  <make_group(app, "Option Group 2"), false, filter>
  ...
<make_subcommands(app)>
  <make_subcommand(sub1, Mode::Normal)>
  <make_subcommand(sub2, Mode::Normal)>
<make_footer(app)>

make_usage calls make_option_usage(opt) on all the positionals to build that part of the line. make_subcommand passes the subcommand as the app pointer.

The make_groups print the group name then call make_option(o) on the options listed in that group. The normal printout for an option looks like this:

        make_option_opts(o)
            ┌───┴────┐
 -n,--name  (REQUIRED)      This is a description
└────┬────┘                └──────────┬──────────┘
make_option_name(o,p)        make_option_desc(o)

Notes:

• *1: This signature depends on whether the call is from a positional or optional.
• o is opt pointer, p is true if positional.

formatting callback

For certain cases it is useful to use a callback for the help formatting

app.formatter_fn(
    [](const CLI::App *, std::string, CLI::AppFormatMode) { return std::string("This is really simple"); });

This callback replaces the make_help call in the formatter with the callback. This is a wrapper around a custom formatter that just needs the main call. All configuration options are available but are ignored as the output is purely driven by the callback. The first argument is a const pointer to the App in question. The formatter will get a std::string usage name as the second option, and a AppFormatMode mode for the final option. It should return a std::string. The AppFormatMode can be Normal, All, or Sub, and it indicates the situation the help was called in. Sub is optional, but the default formatter uses it to make sure expanded subcommands are called with their own formatter since you can't access anything but the call operator once a formatter has been set.
